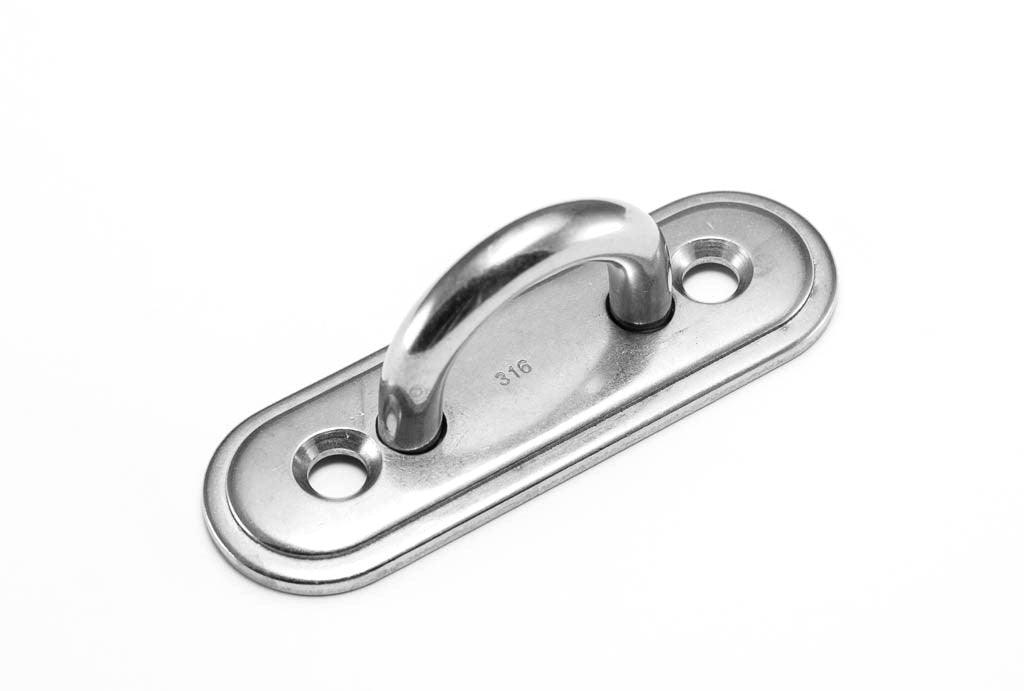

Oblong Eye Plate SS 316-10mm

The Oblong Eye Plate SS 316-10mm is a high-quality stainless steel fitting designed for secure and robust installations of shade sails. Crafted from marine-grade 316 stainless steel, this eye plate offers exceptional durability and resistance to corrosion, making it ideal for outdoor applications where exposure to the elements is a concern. Its polished finish ensures a professional look while providing reliable performance.

Specifications

• Material: Marine-grade 316 stainless steel
• Plate Dimensions: 100mm x 33mm
• Eye Diameter: 10mm
• Thickness: 5mm
• Hole Diameter: 6mm (2 holes)
• Finish: Polished stainless steel
• Load Capacity: Up to 400kg (dependent on installation and substrate)

Recommended Uses

The Oblong Eye Plate SS 316-10mm is perfect for various outdoor installations, especially for securing shade sails in residential and commercial settings. Its robust construction and high load capacity make it suitable for:

• Securing shade sails to wooden, brick, or concrete structures
• Anchoring marine applications such as boat covers and dock lines
• Supporting outdoor canopies, awnings, and other tensile structures
• General-purpose tie-down points for outdoor equipment

Installation Tips

1. Choose the Right Location:

   • Ensure the installation point is structurally sound and capable of bearing the load of the shade sail.
   • Avoid areas with potential obstructions that might interfere with the sail's performance.

2. Prepare the Surface:

   • For wooden structures, ensure the wood is treated and free of rot.
   • For masonry installations, use appropriate anchors and ensure the surface is clean and dry.

3. Drill Pilot Holes:

   • Mark the positions for the mounting holes using the eye plate as a template.
   • Drill pilot holes slightly smaller than the screws or bolts you plan to use. This helps to ensure a secure fit and prevents the material from splitting.

4. Secure the Eye Plate:

   • Use stainless steel screws or bolts to attach the eye plate to the surface. Ensure they are tightened securely but avoid over-tightening to prevent damage to the plate or the mounting surface.
   • For concrete or brick installations, use expansion anchors or appropriate masonry screws for a secure attachment.

5. Inspect Regularly:

   • Periodically check the eye plates for signs of wear or corrosion, especially in harsh environments.
   • Tighten any loose fittings and replace any components that show significant wear to maintain safety and performance.

By following these guidelines, you can ensure a safe and effective installation of your shade sail using the Oblong Eye Plate SS 316-10mm.
