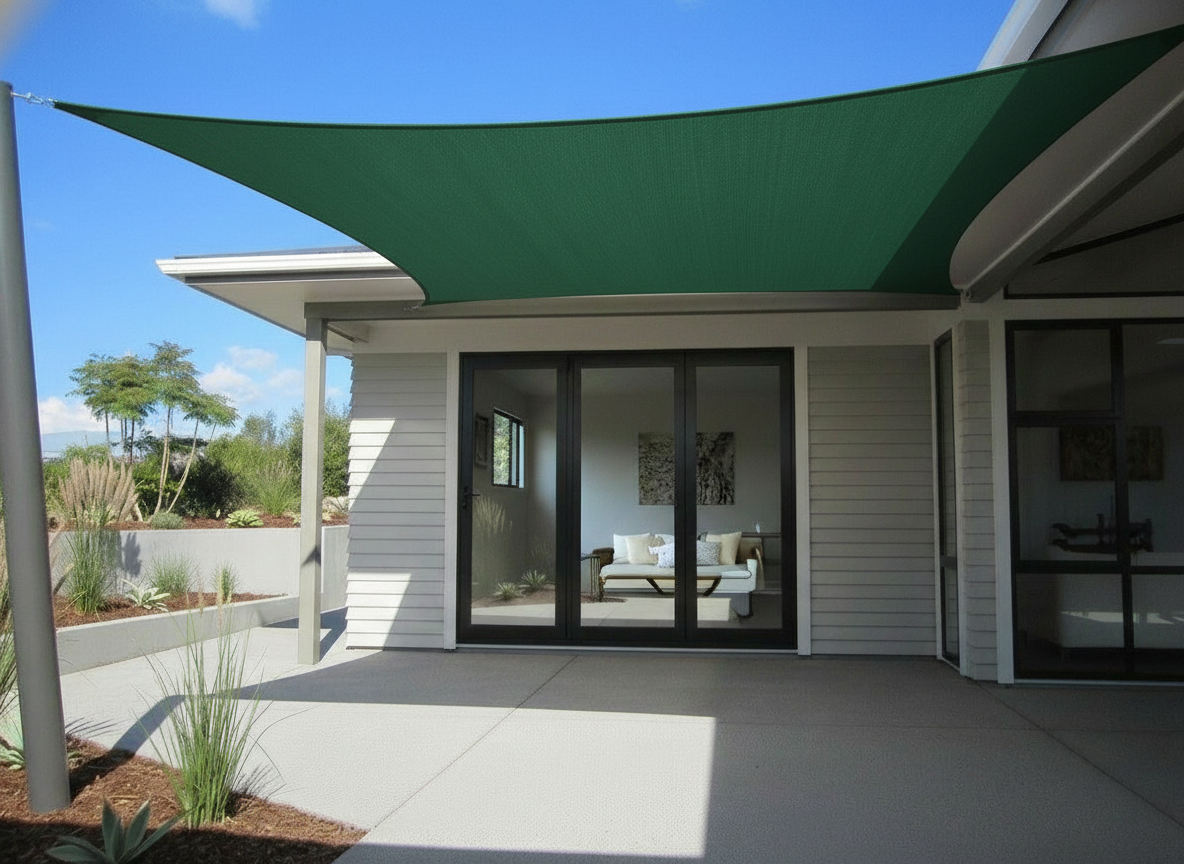

Square Shade Sail

Straight from the people who make it.

We have been making shade sails in our own workshop since 1944 — for homes, schools, councils and commercial projects in over 150 countries. Buy here and you are buying at the factory door, with our workmanship warranty behind it.

Fit GuaranteeIf your custom sail doesn't fit the space you measured, we make you a new one free — and you keep the first one.How the Fit Guarantee works
Made in our own workshopCut and sewn by us in Dargaville, New Zealand, since 1944 — and shipped worldwide from the factory door.Our story since 1944
Rated to 85 mphThe same sails we manufacture for resellers across the US. Correctly installed and tensioned, on adequate fixing points.Fabric specifications
One price, to your doorUp to 5 days to make, 3–7 days express freight. Duties, taxes and tariffs all included — nothing to pay on delivery.Shipping and lead times
10–15 year warrantyMonotec 370 and Commercial 95 carry 15 years. ExtraBlock 330 and Shadetec 320 carry 10.Read the warranty

Description Document

Specification

Installation

FAQ's

High Quality Fabric: Built for balance, strength, and everyday usability, our Square Shade Sail offers one of the most reliable shade solutions available. Manufactured in our custom-built facility, each sail is engineered to maintain shape, tension, and visual appeal over time.

A reinforced 38mm webbing edge is triple-stitched directly into the fabric using premium PTFE thread, creating outstanding resistance to UV exposure and weathering. The square design distributes tension evenly across all four corners, resulting in a flat, stable canopy that resists sagging and performs well in exposed conditions.

Each corner features a 316 marine-grade stainless steel D-ring, reinforced with multiple layers of webbing for secure, long-term fixing. Available in premium Monotec, Extrablock and Shadetec fabrics and a wide range of colours, the Square Shade Sail delivers effective UV protection while blending seamlessly into any landscape or architectural style.

Whether shading a backyard patio, playground, or commercial courtyard, this sail provides a simple, elegant, and durable sun protection solution.

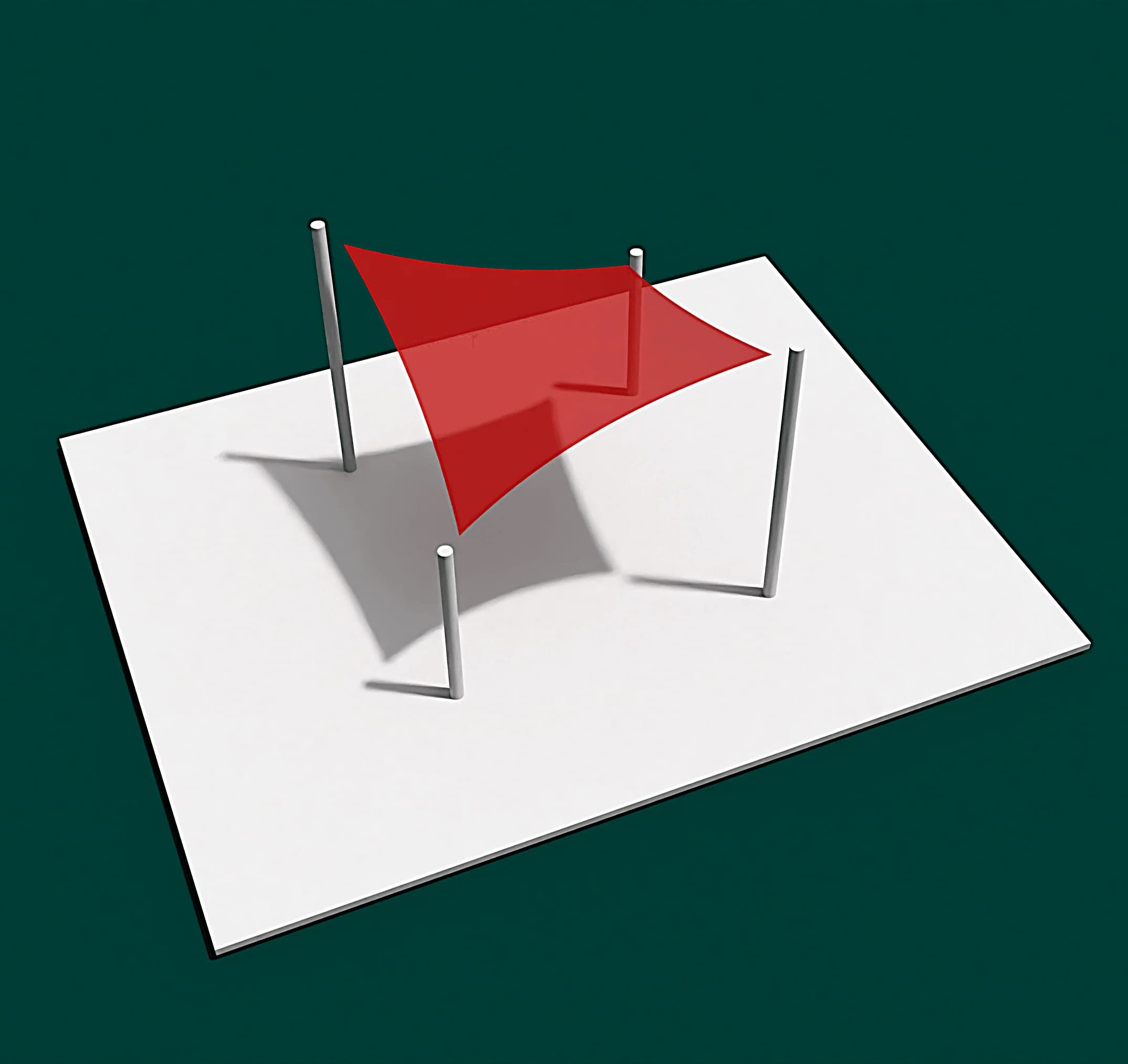

Shape: Square
Fabric Options: Shadetec 320, Extrablock 330, or Monotec 370
UV Protection:
Shadetec 320: Up to ~93% UV block; ~85% shade factor
Extrablock 330: Up to ~95% UV block; ~90% shade factor
Monotec 370: Heavy-duty, high tensile strength fabric for exposed locations
Fabric Weight:
Shadetec 320: ~320 GSM
Extrablock 330: ~330 GSM
Monotec 370: ~370 GSM
Edge Construction: 38mm reinforced webbing, triple-stitched using long-life PTFE thread
Corners: 316 marine-grade stainless steel D-rings with reinforced webbing
Design: Balanced geometry for even tension and reduced movement
Installation: Compatible with posts, walls, or mixed anchor configurations
Weather Resistance: Suitable for permanent or seasonal installation
Included: DIY installation guide and mounting hardware recommendations
Colours: Wide range available across all fabric types

Use Cases: Patios, courtyards, playgrounds, schools, commercial outdoor areas

Installation Guide

Step 1: Choose the Right Location.

Before installation, select an appropriate location that offers sturdy anchor points and provides the coverage you need. Consider:

• Sun Exposure: Ensure the sail provides shade where it’s most needed.

• Anchor Points: Identify strong structures like walls, posts to serve as your sail’s support.

Step 2: Gather Tools and Materials

Ensure you have everything needed for a smooth installation:

• Shade Sail in your preferred size and shape.

• Fixings and Hardware such as turnbuckles, D-shackles, eye bolts, and pad eyes.

• Posts (if no existing anchor points are available).

• Tools like a drill, wrench, measuring tape, and ladder.

Step 3: Prepare the Area.

Clear the designated space to ensure an easy and safe installation. Remove any obstacles, furniture, or debris and confirm the area is accessible for securing anchor points.

Step 4: Install Anchor Points

Strong, secure anchor points are essential for a durable installation. Here’s how to set them up:

Using Existing Structures

• Walls or Beams: Drill holes and attach eye bolts or pad eyes into a solid surface like timber , steel or concrete . Brick masonary is not normaly reccomended. Ensure the fixtures are firmly secured to handle tension.

Installing Posts

• Placement: If posts are needed, position them to align with the shade sail’s attachment points.

• Setting Posts: Dig holes one-third the length of the posts and fill with concrete for stability. Allow the concrete to cure fully before attaching the sail.

Step 5: Attach the Shade Sail

With anchor points in place, it’s time to secure the shade sail:

1. Start with One Corner: Attach one corner of the sail to an anchor point using a D-shackle or turnbuckle.

2. Continue Around the Sail: Repeat the process for the remaining corners, connecting each to its anchor point.

3. Secure Tightness: Gradually tighten turnbuckles to ensure the sail is taut but not over-stressed.

Step 6: Check Fixings for Security

After securing the sail, inspect all connections to ensure they are tight and stable:

• Tighten turnbuckles to eliminate slack.

• Check for any loose bolts or fittings.

Step 7: Perform Final Adjustments

Make any necessary adjustments to ensure the sail is evenly tensioned:

• Alignment: Ensure the sail is evenly stretched between anchor points.

• Stability: Verify that all fixings are secure and capable of withstanding wind and weather.

Step 8: Maintain Your Shade Sail

Regular maintenance keeps your shade sail in top condition:

• Clean Periodically: Use a mild detergent and water to remove dirt and debris.

• Inspect Fixings: Check for signs of wear or rust and replace damaged components.

• Re-tension When Needed: Over time, the sail may stretch slightly, so tighten the fixings as necessary.

Compare fabrics

Tap an image to see full details

01 Lifestyle

In Use

As a shade sail

02 20 cm

Swatch

~20 cm away

03 10×

Macro

Microscopic close-up

The honest answer

Why does our shade sail cost more than the one at the hardware store?

Specification comparison
Specification	Hardware-store sail	Shade Space
Fabric weightA 125gsm sail weighs about the same as a light bedsheet Compare our four fabrics	125–200 gsm	320–370 gsm
WeaveHow the fabric holds its shape under tension See the weave up close	Tape/tape — flat woven, stretches and sags	Monofilament — locks against the weave
UV block90% to 95% is half the UV getting through, not 5% better UV ratings by fabric	"Up to 95%", untested	Up to 98%, published per fabric
ThreadThe first thing to fail on a cheap sail How we stitch a sail	Polyester — degrades in UV	SolarFix® PTFE — outlives the fabric
Edge reinforcementCable or webbing — both engineered, neither hemmed Cable vs webbing edges	Hemmed	38mm webbing, triple-stitched
Corners & fixings See the hardware	Grommets	316 marine stainless D-rings, layered reinforcement
Fire rating Which fabrics are certified	None	NFPA 701 / ASTM E84 / CA Title 19 (select fabrics)
Who honours the warrantyRead the small print on any reseller's site Our workshop since 1944	The fabric mill — not the seller	Us. We made it.
Warranty length Read the warranty	3 years — storm damage excluded	10–15 years
Realistic life How to make it last	2–3 years	10–15 years

where to install a square shade sail?

The Square Shade Sail is one of the most adaptable and widely used shade sail shapes. Its four equal sides create balanced tension and a flat, stable canopy, making it perfect for open areas where broad coverage and visual order are important. Whether installed as a single sail or used in larger layouts, this shape provides reliable shade with minimal complexity.

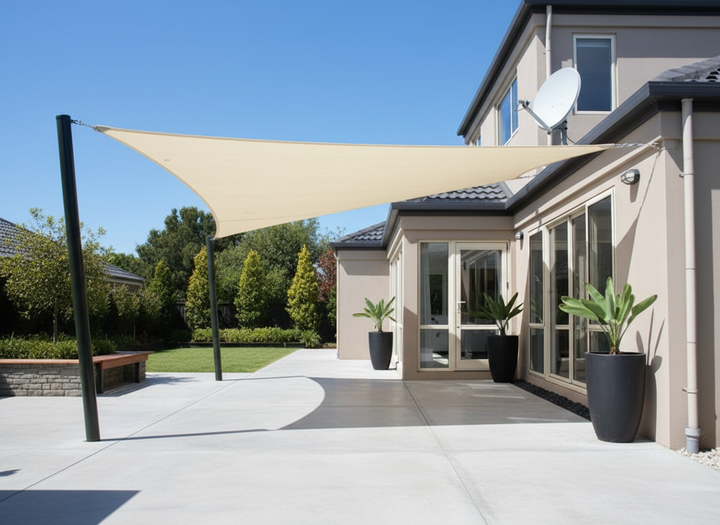

Patios & Outdoor Living Areas

Ideal for seating areas, BBQ zones, and outdoor lounges. The square profile provides generous overhead coverage while maintaining a clean, structured look.

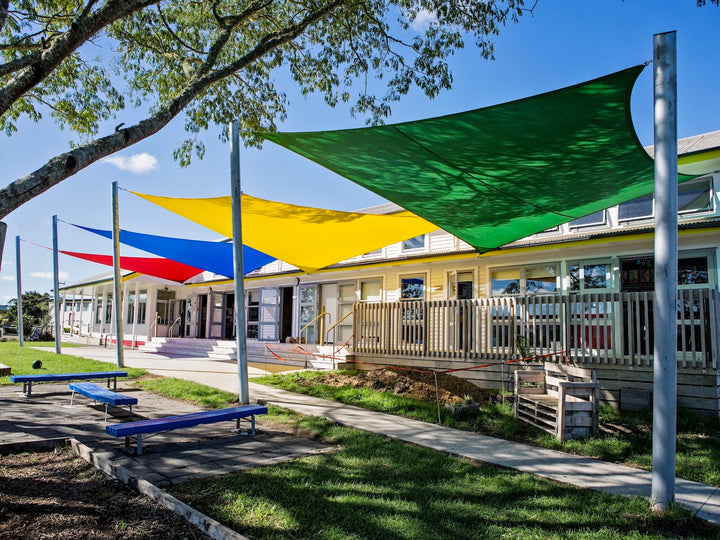

Playgrounds & Schools

A popular choice for education environments, this shape offers predictable coverage and stability, creating safer, cooler outdoor play areas.

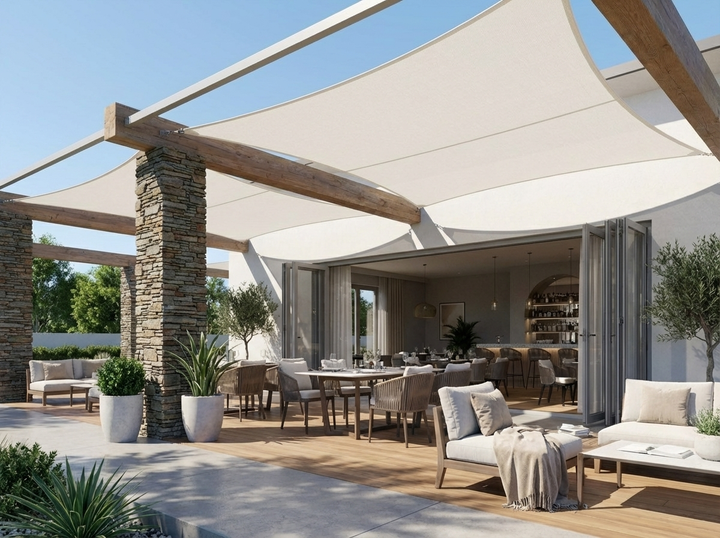

Commercial & Hospitality Areas

Frequently used in cafés, childcare centres, and communal spaces, square sails provide dependable shade with minimal visual clutter.

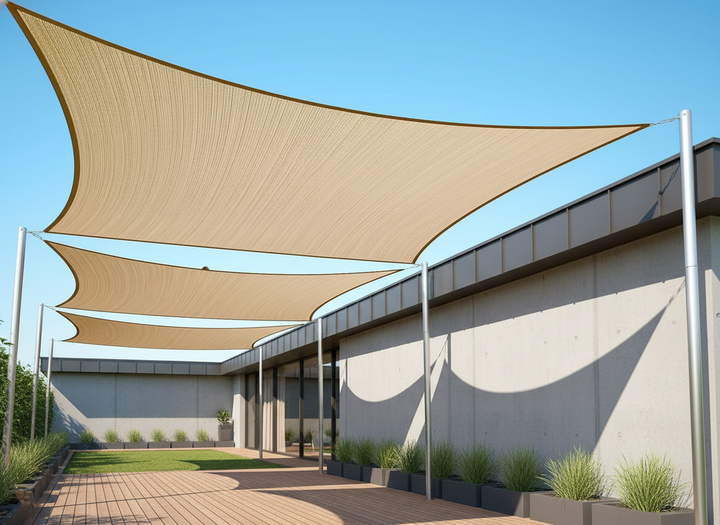

Courtyards & Central Spaces

Works perfectly in open courtyards where symmetry enhances the space. The sail creates a strong focal point while delivering comfortable shade throughout the day.

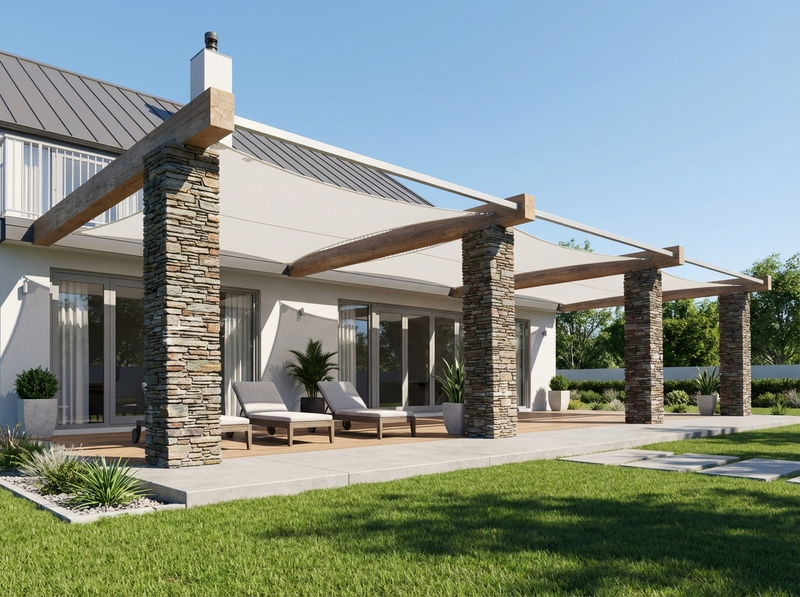

key features.

Designed for performance and reliability, the Square Shade Sail delivers balanced tension, strong wind resistance, and a refined architectural appearance. Its symmetrical form ensures long-term stability while providing efficient, wide-area shade coverage.

Balanced four-corner tension: Equal sides promote a taut, flat surface with reduced movement.
Reinforced 38mm webbing edge: Triple-stitched using UV-resistant PTFE thread for exceptional durability.
Stable in windy conditions: The square geometry helps resist billowing and uneven loading.
Clean, architectural aesthetic: Complements modern homes and structured outdoor layouts.
