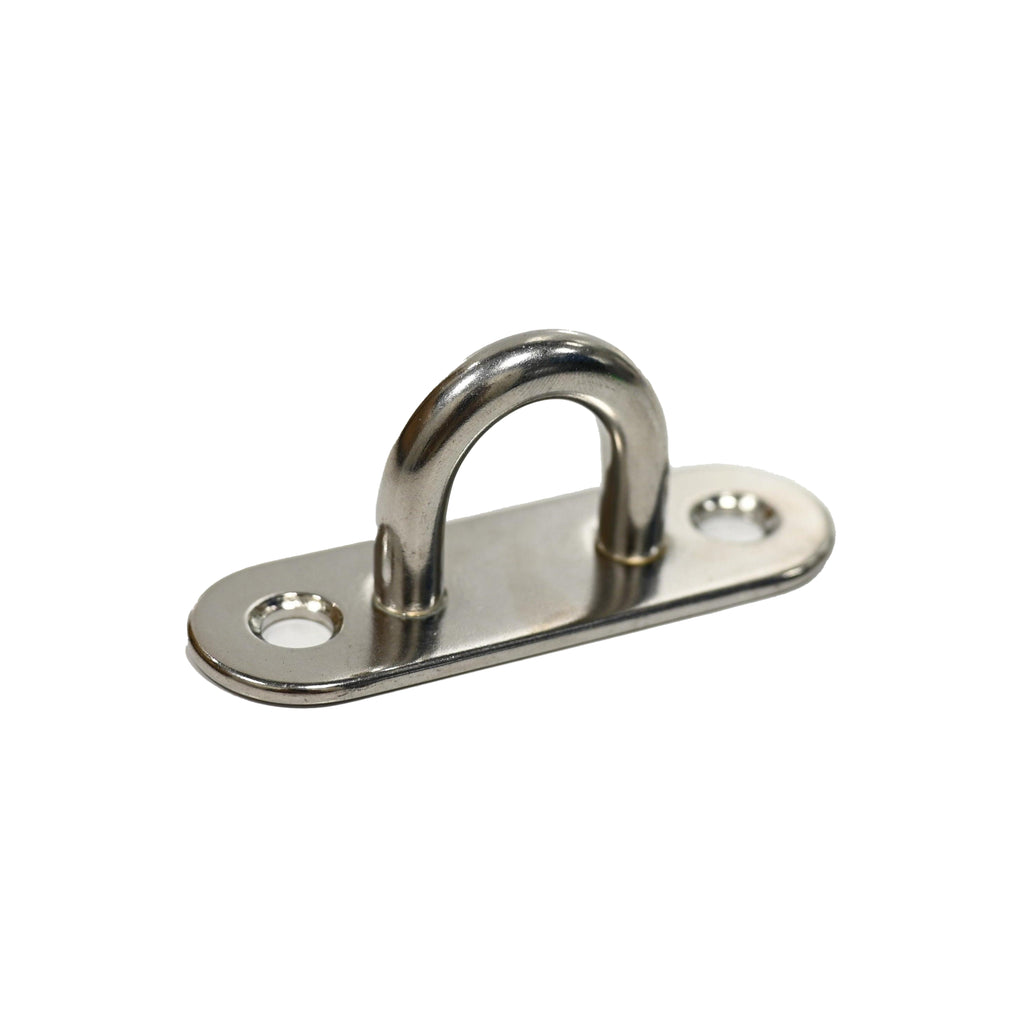

Oblong Eye Plate SS 316-8mm (80mm x 27mm)

The Oblong Eye Plate SS 316-8mm (80mm x 27mm) is a high-quality and durable fastening hardware designed specifically for shade sail installations. Made from marine-grade stainless steel (SS 316), this eye plate ensures superior corrosion resistance and long-lasting performance even in harsh outdoor environments. The oblong shape and robust construction make it an ideal choice for securely anchoring shade sails, providing both reliability and aesthetic appeal.

Specifications

• Material: Marine-grade Stainless Steel (SS 316)
• Thickness: 3mm
• Dimensions: 80mm (Length) x 27mm (Width)
• Weight: Approximately 60g
• Load Capacity: High tensile strength suitable for heavy-duty applications
• Finish: Polished for enhanced corrosion resistance and visual appeal
• Mounting Holes: Two pre-drilled holes for easy installation

Recommended Uses

The Oblong Eye Plate SS 316-8mm (80mm x 27mm) is versatile and can be used in various applications, including:

• Shade Sail Installation: Ideal for securely attaching shade sails to walls, posts, or other structural supports.
• Tensile Membrane Structures: Suitable for fastening tensile membranes in residential and commercial settings.
• Marine Applications: Perfect for use on boats and other marine structures due to its superior corrosion resistance.
• Outdoor Canopies and Awnings: Can be used to anchor canopies, awnings, and other outdoor shading solutions.
• General Rigging: Suitable for any application requiring strong and reliable eye plates.

Installation Tips

1. Choose the Right Location: Ensure the mounting surface is strong enough to support the load of the shade sail. Common surfaces include brick, concrete, and sturdy wood structures.
2. Mark the Mounting Holes: Use the oblong eye plate as a template to mark the positions of the four mounting holes on the surface.
3. Drill Pilot Holes: Drill pilot holes at the marked positions to make it easier to insert screws or bolts.
4. Use Appropriate Fasteners: Select stainless steel screws or bolts that match the thickness and load requirements. Ensure they are suitable for the mounting surface.
5. Secure the Eye Plate: Align the oblong eye plate with the pilot holes and secure it using the chosen fasteners. Tighten the fasteners evenly to avoid any misalignment.
6. Attach Shade Sail Hardware: Connect the shade sail hardware, such as turnbuckles, shackles, or snap hooks, to the eye plate. Ensure all connections are secure and tight.
7. Tension the Shade Sail: Gradually tension the shade sail to the desired tightness, ensuring even distribution of tension across all attachment points.
8. Regular Maintenance: Periodically check the eye plates and fasteners for signs of wear or corrosion. Tighten any loose connections and replace any damaged components as needed.

By following these guidelines, you can ensure a safe, secure, and long-lasting installation of your shade sail using the Oblong Eye Plate SS 316-8mm (80mm x 27mm).
